Scale Window

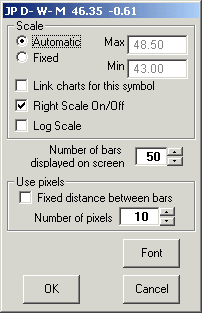

  Use the scale window to set the active chart's scale to automatic or fixed.  The link charts box will link all open chart windows that have the same symbol.  This feature is useful when you want to go to a certain bar in a chart.  Going to any bar on one chart will cause all other chart with the same symbol to automatically go to the same bar.

You can also turn the right scale off as well as change the scale of the chart to log which is useful for higher time frame charts spanning long time periods (i.e. a multi-year monthly chart)

If you want the chart to display a certain number of bars select the desired number next to 'number of bars displayed on screen'.  The maximum number is 1000.

Finally, if you want there to be an exact distance between bars place a check mark in the 'fixed distance between bars' box and select the number of pixels.
